Butterfly valves

Easy installation, maintenance-free drive

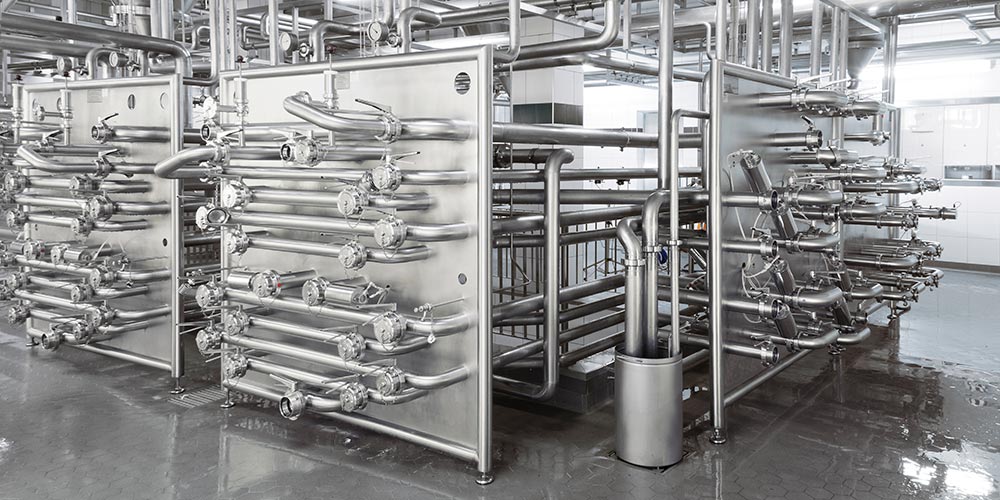

KIESELMANN butterfly valves are the space-saving solution for shutting down product flows in process plants and on panels and containers hygienically and cost-effectively. They are also available as intermediate flange butterfly valves as well as numerous other connection variants, such as welding and threaded ends.

We manufacture all valves at our headquarters in Knittlingen.

Our butterfly valves are excellent; and are characterised by:

  • Easy installation, many connection options
  • Service-friendly intermediate flange design
  • tailor-made and long-term spare parts supply
  • as well as the highest quality in dimensional accuracy and surface finish.

The sealing elements used all have proof of suitability for use in the food industry. The ergonomic heat protection handle of our butterfly valves is available as 360° all-round switching, with 90° locking and optionally also with  switching limitation. Alternatively, these valves are also available with a stainless steel handle.

Automatically cost-effective

You do not have to go without automation with this cost-effective valve solution. On the contrary, for automatic operation, the butterfly valves can be equipped with a pneumatic rotary actuator . Our modular system makes it possible to change over quickly and easily from manual to pneumatic drive without removing the valves from the piping system. The drives are available with sensors or control head KI-TOP.

KIESELMANN pneumatic rotary actuators are characterised by a particularly high torque. The closed version in stainless steel housing is completely maintenance-free. We give you a 5-year guarantee. The standard position indicator lets you know at any time how the valve is switched. The practical end position detector ensures permanently reliable feedback without the hassle of readjusting the limit switches.





Advantages at a glance:

• Robust, designed to be easy to install

• Ergonomic thermal protection handle (also in colour of choice)

• Handle type plastic or stainless steel

• Maintenance-friendly construction

• Automation option

• Drives selectable, three power levels

• Sealing materials Silicone, EPDM, FKM, HNBR, PTFE

Leakage butterfly valves





Ausführungen:

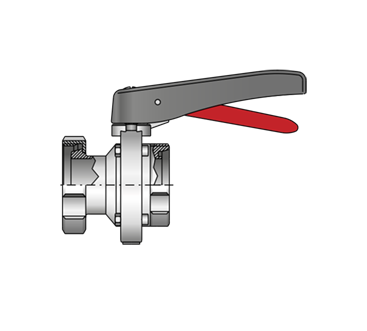

  • Butterfly valve 4304 K/M-G

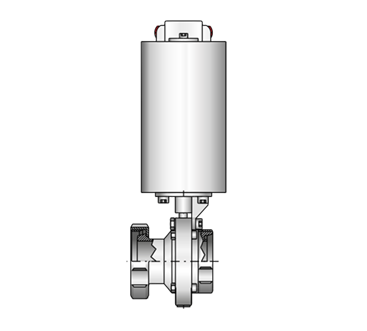

  • Butterfly valve 4404 K/M-G

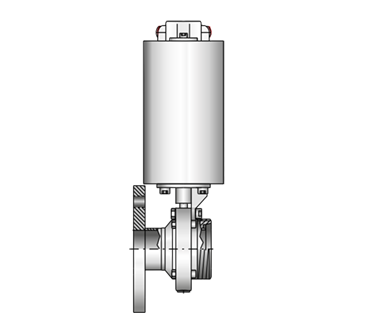

  • Butterfly valve 4307 PN10-G
  • Butterfly valve 4307 PN10-G
  • Intermediate flange butterfly valve 4310 S-S

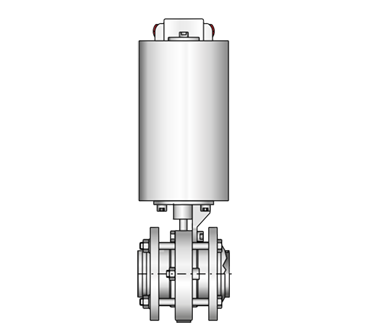

  • Intermediate flange butterfly valve 4410 S-S
  • Butterfly valve 4346 Cl-Cl

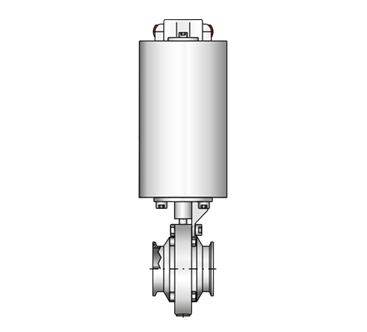

  • Butterfly valve 4446 Cl-Cl
  • Multi-way butterfly valve 4314 G-G-G
  • Multi-way butterfly valve 4914 G-G-G
  • Multi-way butterfly valve 4414 G-G-G

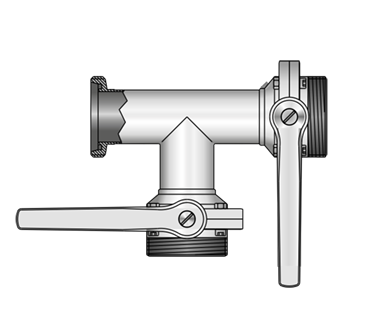

  • Multi-way butterfly valve 4315 G-G-G

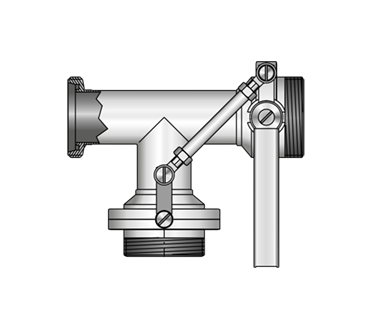

  • Multi-way butterfly valve 4915 G-G-G

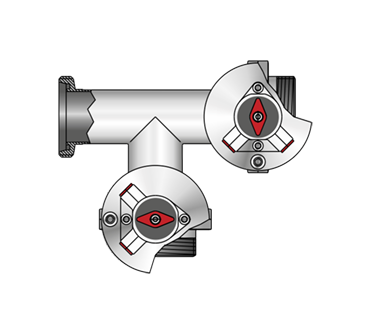

  • Multi-way butterfly valve 4415 G-G-G

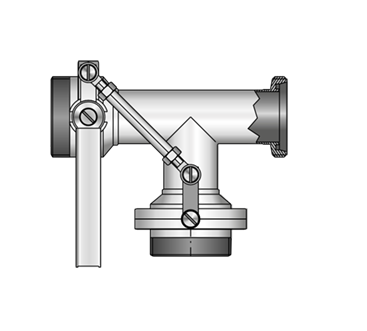

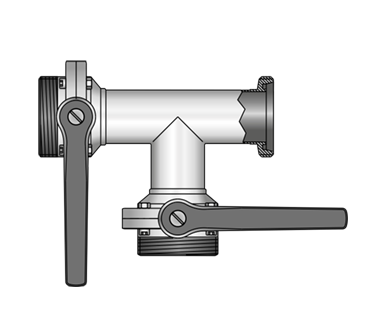

  • Multi-way butterfly valve 4316 G-G-G
  • Multi-way butterfly valve 4916 G-G-G

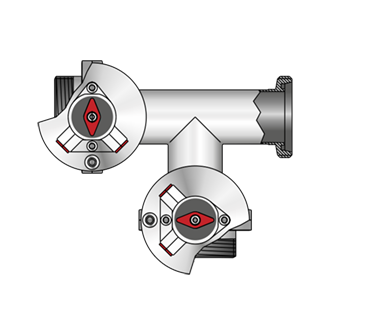

  • Multi-way butterfly valve 4416 G-G-G

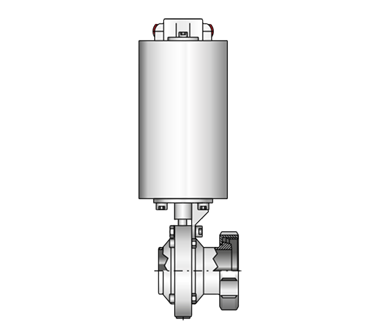

  • Butterfly valve 4405 K/M-S

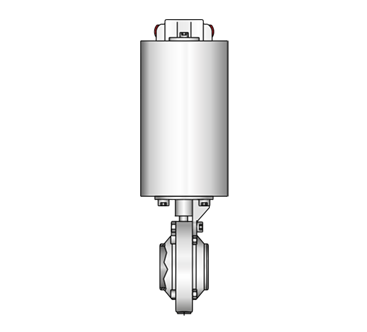

  • Butterfly valve 4401 S-S

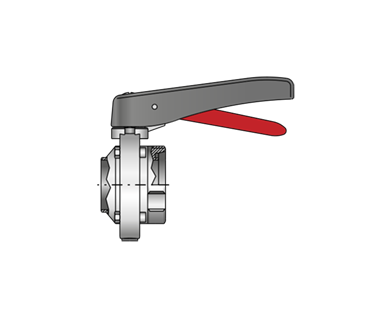

  • Butterfly valve 4302 G-S

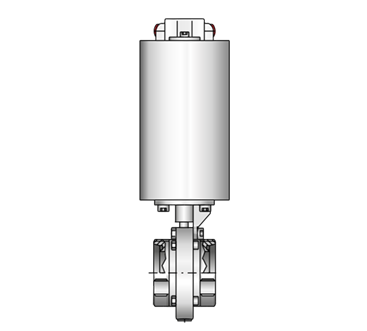

  • Butterfly valve 4403 G-G

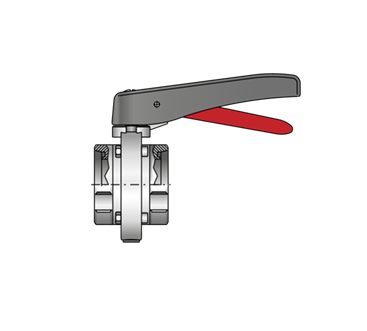

  • Butterfly valve 4303 G-G
  • Butterfly valve 4301 S-S

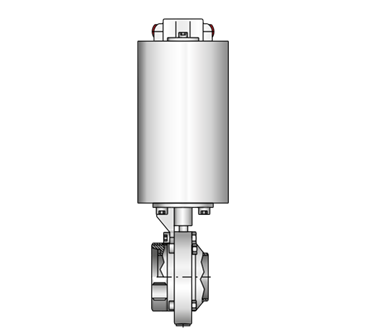

  • Butterfly valve 4402 G-S

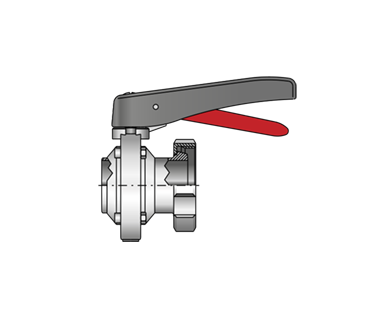

  • Butterfly valve 4305 K/M-S

Technical data

Sizes

DN 15–200 1"–4"

Seals

EPDM HNBR Silicone FKM

SIP 140°C, 30 min SIP 100°C, 30 min SIP 110°C, 30 min SIP 90°C, 30 min

Materials

in product contact

1.4301 / AISI 304 1.4307 / AISI 304L 1.4404 / AISI 316L

Product-contacting surfaces

Ra ≤ 0.8 µm e-polished

Actuator

PDA 75 / PDA 100 / PDA 125

Operating pressure

DN 15–65 / 1"-2½" DN 80-100 / 3"–4" DN 125 / 150 / 200

max. 16 bar max. 10 bar max. 6 bar

Control air

5.5–8 bar lower control air pressures on request

Operating temperature:

95 °C
